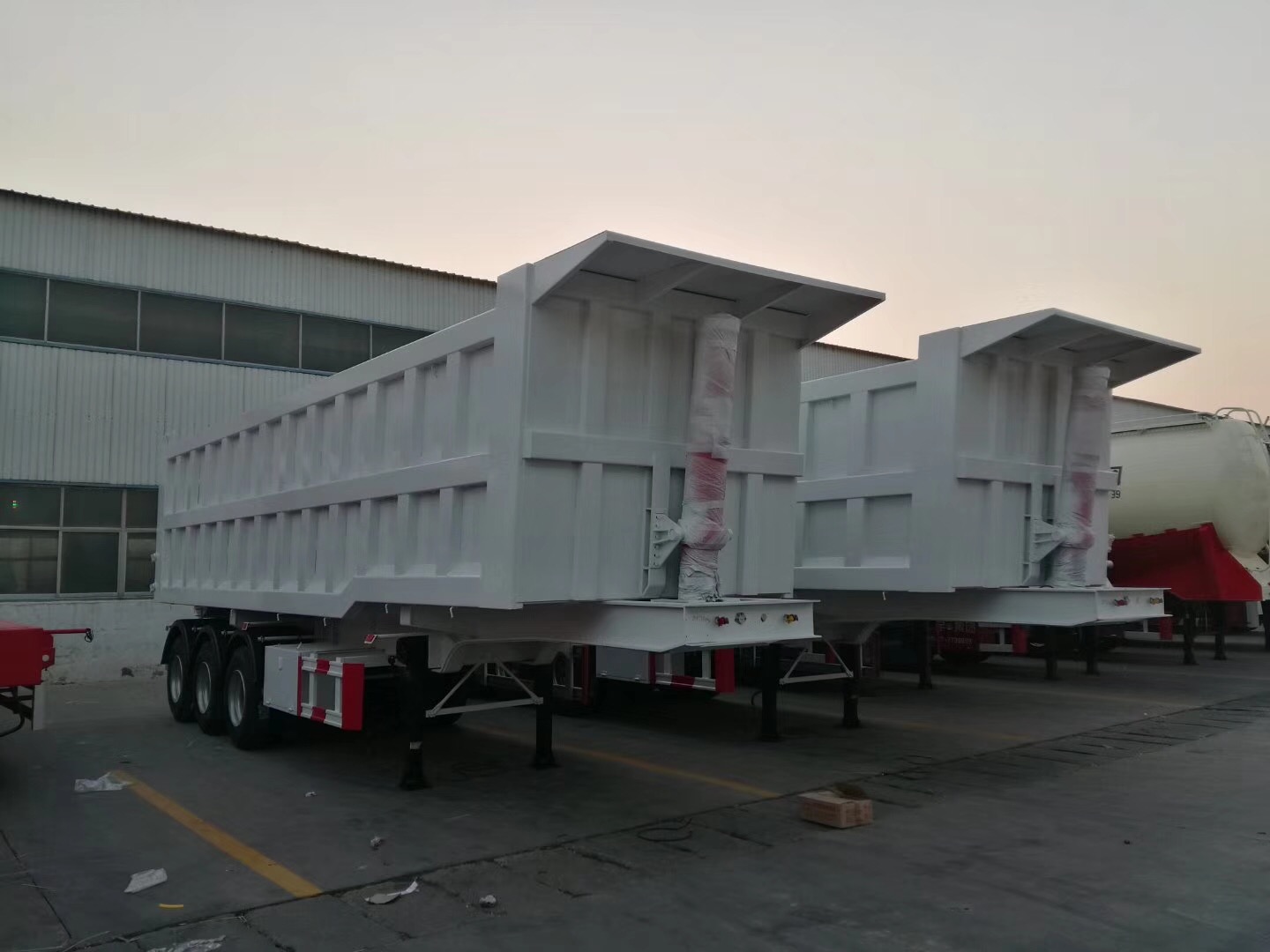

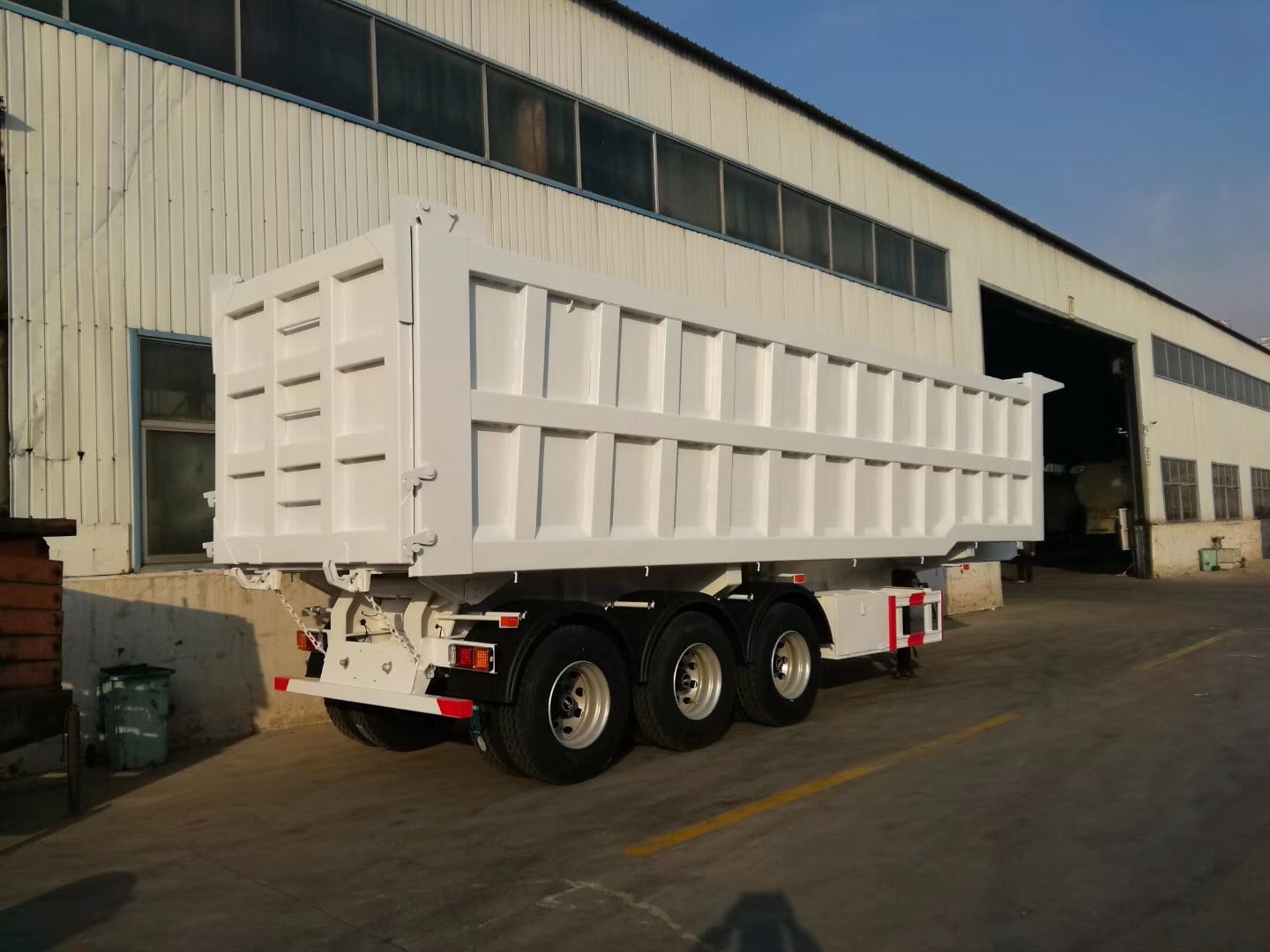

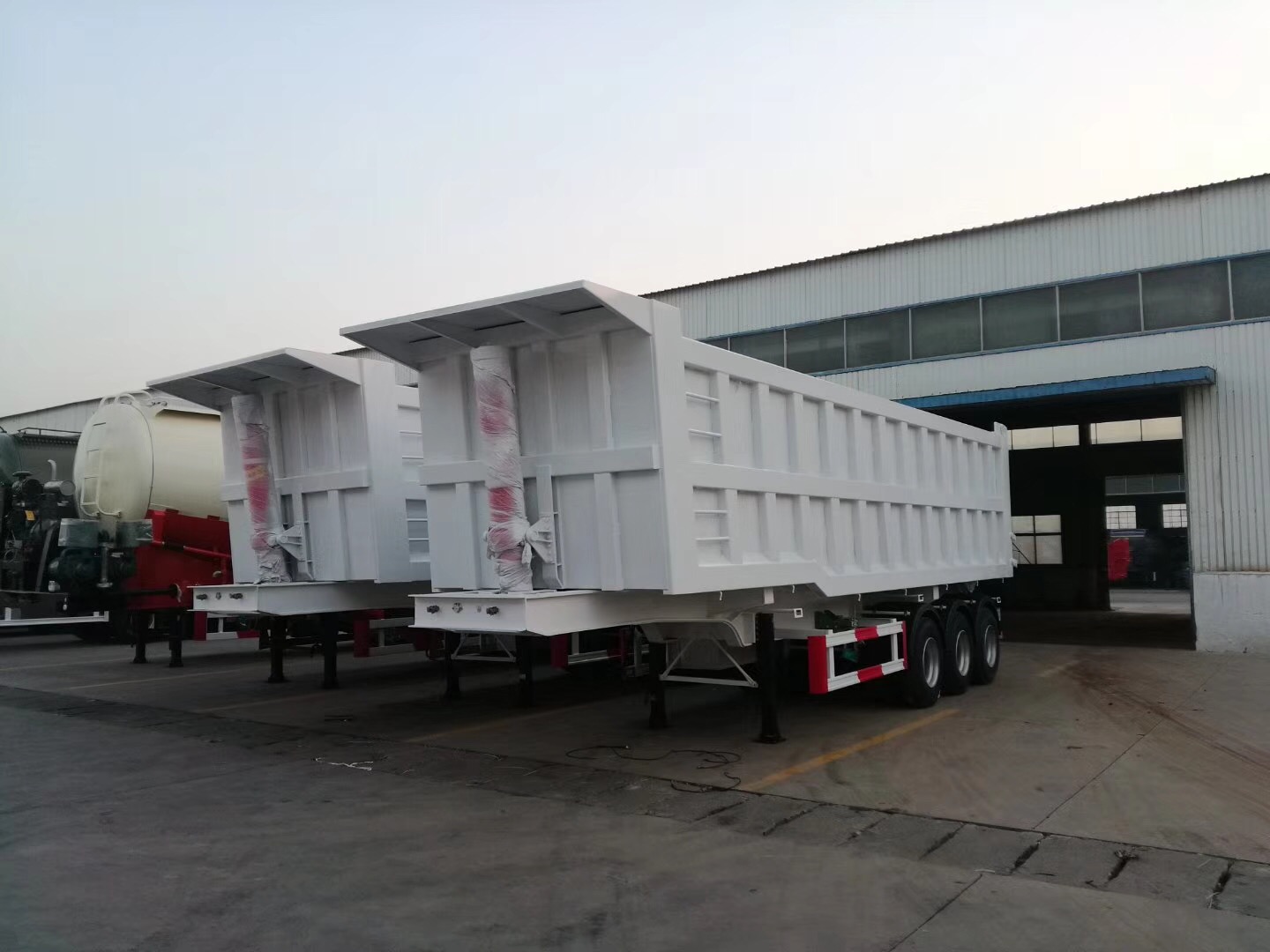

3 Axle Rear Dump Trailer

Product Features :

Start Consulting

Product details

Body/Chassis:

Capacity: 30m³
Max Payload:45tons

Main Beam: Q345B
Height:500mm
Top Flange:16mm
Middle Plate:12mm
Bottom Flange:18mm

Axle:
3 axle*13ton

King-pin
3.5 inch(90mm)

Landing legs:
Lift capacity 28 ton

Brake System
T30/30 spring brake chamber

Suspension
Mechanical suspension

Dimensions:
Total length: 8870mm
Total width 2500mm
Total Height: 3500mm

Tires:
11.00R20*13pcs

Rim:
8.0-20*13pcs

Standard Accesspries:
Spare tire carrier*2
LED light

Electricity
Receptacle: 7 ways(7wire harness)and quick change type
Voltage: 24v
