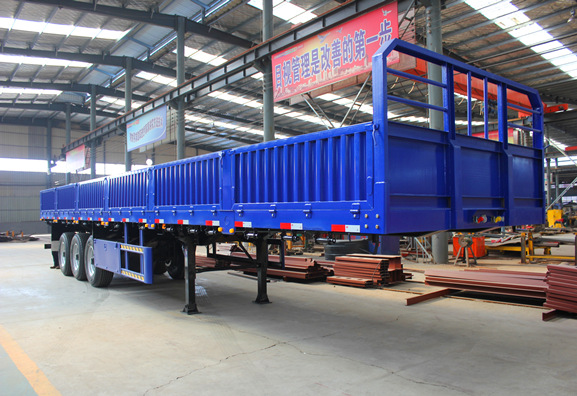

13 Meters General Cargo Transport Semi Trailer

Product Features :

Start Consulting

Product details

Body/Chassis:

Main chassis: Steel
Tare Weight: 7.5 tons
Max Payload:50 tons

Main Beam: Q345B
Height:500mm
Top Flange:14mm
Middle Plate:8mm
Bottom Flange:16mm

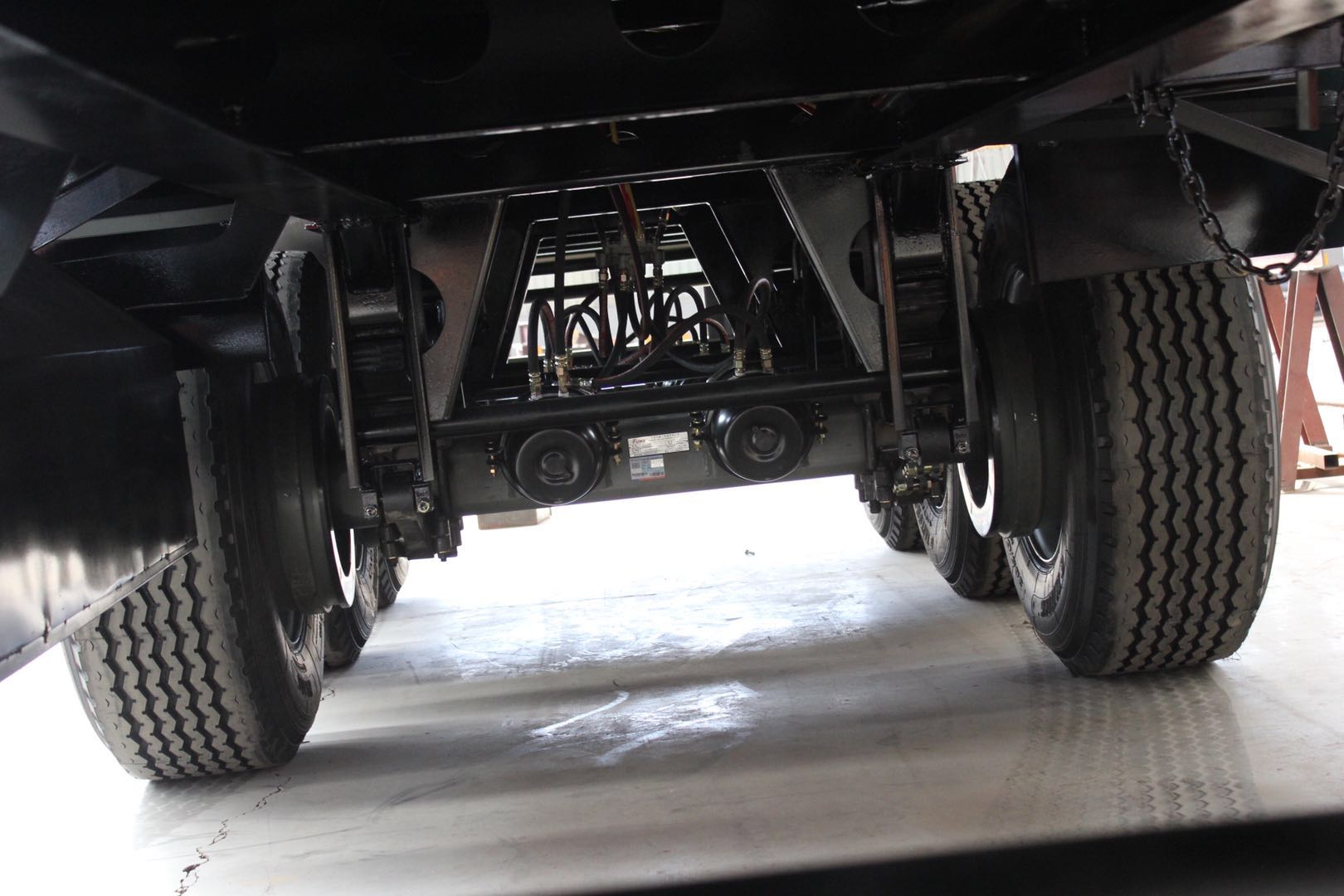

Axle:
3 axle*13ton

King-pin
2”(50mm) or 3.5”(90mm) JOST Brand

Landing legs:
Lift capacity 28 ton

Brake System
6 double brake chamber

Suspension
Mechanical Suspension or Air Suspension

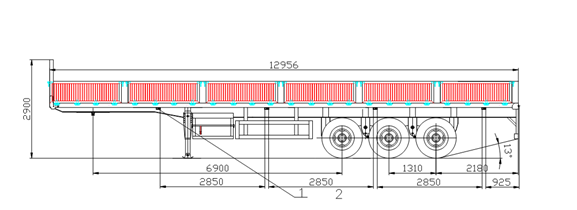

Dimensions:
Total length: 12956mm
Total width 2500mm
Total Height: 2900mm

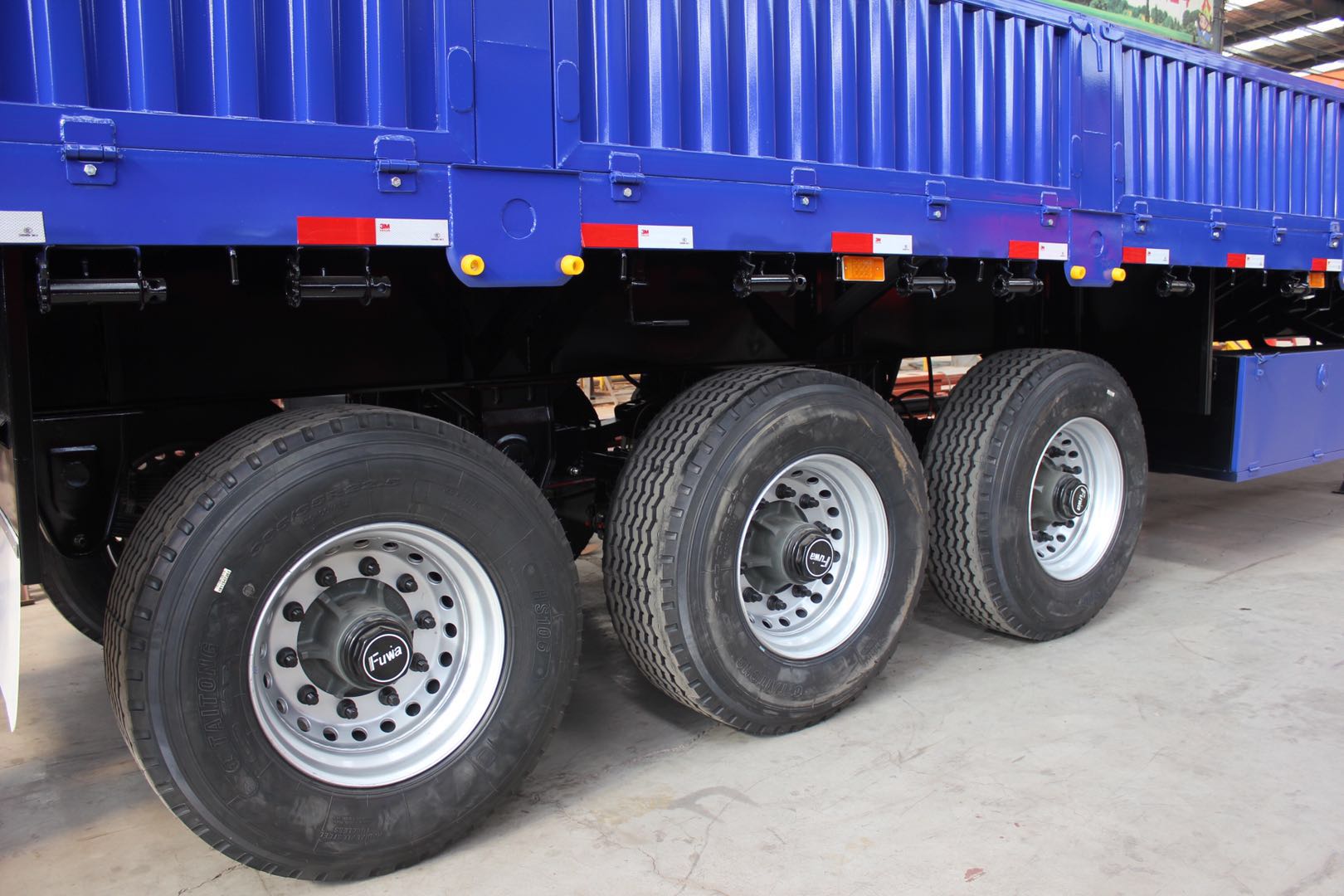

Tires:
12R22.5*12pcs

Rim:
9.0-22.5*12pcs

Side Wall:
600mm Standard Height or As your request

Standard Accesspries:
Spare tire carrier*1
LED light

Electricity
Receptacle: 7 ways(7wire harness)and quick change type
Voltage: 24v
